1.15 VSWR 50dB 1.73GHz Dual Directional Loop Coupler

Place of Origin : China

Brand Name : CWJ

Certification : ISO9001

Price : Negotiation

Packaging Details : Wooden case or with outer carton, or as per customers' specific requirements.

Payment Terms : T/T; L/C

Supply Ability : 20 Piece/Pieces per month

Model Number : WDHC

MOQ : 2PCS

Delivery Time : 25-30 work days

Contact Now

CWJ manufactures a standard product line of loop couplers covering a wide frequency range. For more information feel free to call us and discuss your needs with one of our sales engineers.

Dual Diretional Loop Coupler Product Range
MODEL NO	FREQ RANGE	VSWR	COUPLING	DIREC TIVITY	OPERATION TEMP	FLANGE TYPE	WG TYPE	CONNECTOR	MATERIAL
MODEL NO	(GHz)	Max	(dB)	(dB) Min	(°C)	FLANGE TYPE	WG TYPE	CONNECTOR	MATERIAL
CWJ14WDHC	1.13-1.73	1.1	30-70	20	-40~+70	FDP14/FDM14	WR650	N-50K	Al/Cu
CWJ14WHHC	1.13-1.73	1.1	30-70	20	-40~+70	FDP14/FDM14	WR650	N-50K	Al/Cu
CWJ14WDHHC	1.13-1.73	1.1	30-70	20	-40~+70	FDP14/FDM14	WR650	N-50K	Al/Cu
CWJ18WDHC	1.45-2.20	1.1	30-70	20	-40~+70	FDP18/FDM18	WR510	N-50K	Al/Cu
CWJ18WHHC	1.45-2.20	1.1	30-70	20	-40~+70	FDP18/FDM18	WR510	N-50K	Al/Cu
CWJ18WDHHC	1.45-2.20	1.1	30-70	20	-40~+70	FDP18/FDM18	WR510	N-50K	Al/Cu
CWJ22WDHC	1.72-2.61	1.1	30-70	20	-40~+70	FDP22/FDM22	WR430	N-50K	Al/Cu
CWJ22WHHC	1.72-2.61	1.1	30-70	20	-40~+70	FDP22/FDM22	WR430	N-50K	Al/Cu
CWJ22WDHHC	1.72-2.61	1.1	30-70	20	-40~+70	FDP22/FDM22	WR430	N-50K	Al/Cu
CWJ26WDHC	2.17-3.30	1.1	30-70	20	-40~+70	FDP26/FDM26	WR340	N-50K	Al/Cu
CWJ26WHHC	2.17-3.30	1.1	30-70	20	-40~+70	FDP26/FDM26	WR340	N-50K	Al/Cu
CWJ26WDHHC	2.17-3.30	1.1	30-70	20	-40~+70	FDP26/FDM26	WR340	N-50K	Al/Cu
CWJ32WDHC	2.60-3.95	1.1	30-70	20	-40~+70	FDP32/FDM32	WR284	N-50K	Al/Cu
CWJ32WHHC	2.60-3.95	1.1	30-70	20	-40~+70	FDP32/FDM32	WR284	N-50K	Al/Cu
CWJ32WDHHC	2.60-3.95	1.1	30-70	20	-40~+70	FDP32/FDM32	WR284	N-50K	Al/Cu
CWJ40WDHC	3.22-4.90	1.1	30-70	20	-40~+70	FDP40/FDM40	WR229	N-50K	Al/Cu
CWJ40WHHC	3.22-4.90	1.1	30-70	20	-40~+70	FDP40/FDM40	WR229	N-50K	Al/Cu
CWJ40WDHHC	3.22-4.90	1.1	30-70	20	-40~+70	FDP40/FDM40	WR229	N-50K	Al/Cu
CWJ48WDHC	3.94-5.99	1.1	30-70	20	-40~+70	FDP48/FDM48	WR187	N-50K	Al/Cu
CWJ-48WHHC	3.94-5.99	1.1	30-70	20	-40~+70	FDP48/FDM48	WR187	N-50K	Al/Cu
CWJ48WDHHC	3.94-5.99	1.1	30-70	20	-40~+70	FDP48/FDM48	WR187	N-50K	Al/Cu
CWJ58WDHC	4.64-7.06	1.1	30-70	20	-40~+70	FDP58/FDM58	WR159	N-50K	Al/Cu
CWJ58WHHC	4.64-7.06	1.1	30-70	20	-40~+70	FDP58/FDM58	WR159	N-50K	Al/Cu
CWJ58WDHHC	4.64-7.06	1.1	30-70	20	-40~+70	FDP58/FDM58	WR159	N-50K	Al/Cu
CWJ70WDHC	5.38-8.17	1.1	30-70	20	-40~+70	FDP70/FDM70	WR137	N-50K	Al/Cu
CWJ70WHHC	5.38-8.17	1.1	30-70	20	-40~+70	FDP70/FDM70	WR137	N-50K	Al/Cu
CWJ70WDHHC	5.38-8.17	1.1	30-70	20	-40~+70	FDP70/FDM70	WR137	N-50K	Al/Cu
CWJ84WDHC	6.57-9.99	1.1	30-70	20	-40~+70	FBP84/FBM84/FBE84	WR112	N-50K	Al/Cu
CWJ84WHHC	6.57-9.99	1.1	30-70	20	-40~+70	FBP84/FBM84/FBE84	WR112	N-50K	Al/Cu
CWJ84WDHHC	6.57-9.99	1.1	30-70	20	-40~+70	FBP84/FBM84/FBE84	WR112	N-50K	Al/Cu
CWJ100WDHC	8.20-12.4	1.1	30-70	20	-40~+70	FBP100/FBM100/FBE100	WR90	N-50K	Al/Cu
CWJ100WHHC	8.20-12.4	1.1	30-70	20	-40~+70	FBP100/FBM100/FBE100	WR90	N-50K	Al/Cu
CWJ100WDHHC	8.20-12.4	1.1	30-70	20	-40~+70	FBP100/FBM100/FBE100	WR90	N-50K	Al/Cu

Product Tags:

50dB Dual Directional Loop Coupler

1.1VSWR Dual Directional Loop Coupler

1.73GHz Dual Directional Loop Coupler

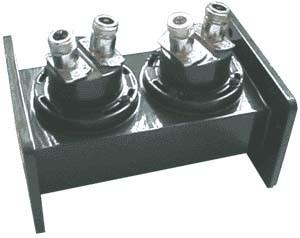

1.15 VSWR 50dB 1.73GHz Dual Directional Loop Coupler Images
